1965-68 Metal Rear Seat Divider
Coupe or Convertible
Preparation and Installation
This page contains 14 pictures (approx 32k ea.), so it may take some time to load.
About this Project
We commonly are asked to perform installation of this item on customer cars.  It is popular since this 18 guage metal divider is significantly stronger than the original cardboard divider common to vintage Mustangs.  We have also found other adaptations for this piece. For instance it can be used for mounting base speakers.  It can be finished in a number of ways that help finish the interior of the trunk compartment.  It can be painted, insulated or carpeted in any combination depending on your goal.  Certainly, with additional insulation, it will help reduce road noise as well as provide a stronger divider.  If your goal is to retain originality but simply gain strength, it can be mounted in combination with the original cardboard divider.  This is an easy do it yourself project requiring only basic tools and skills.  For the purposes of this particular installation we simply painted the divider the same original color as the car to match the trunk interior.  We have paints in all original Mustang colors if you wish to do the same.
Parts Used
  • 1 Metal divider specific to your model vehicle 1964 1/2, 1965, 1966, 1967 or 1968
  • This divider fits both the coupe and convertible.
  • Paint and primer (1 can of each) if desired. Insulation or carpet (and glue) if desired.
  • 33 # 8 sheet metal screws.
  • The divider is available at Metro Parts Market at the following link - Steel Rear Seat Divider
Tools Required
  • Grease and wax remover or similar cleaner
  • 3/32nd Allen wrench  (for removing quarter window handles)
  • Phillips head screwdriver
  • Electric drill and 1/8th drill bit
  • 3/8ths socket and short extension


(You will need a thin flat blade screwdriver if your rear window handles are reproduction as they use a slotted screw rather than an allen screw..)

Other projects to consider while installing the Rear Seat Divider
  • If your rear shocks need replacing now is the time to do it since the access hole for the upper mounting brackets are located very close to the divider. It is easier to go ahead and replace them now since you will have to remove this divider to get to them at a later date.
  • If your rear interior quarter panels need repainting or dyeing now is the time to do it, since they will be removed during the installation process. Check for more info on paints and dyes for your Mustang.
  • Also lubricate your quarter window regulators with white Lithium grease.
  • This is also a good time to replace your rear package tray if needed.  If you elect to paint the divider the body color, consider getting extra to touch up your trunk compartment at the same time.
Part 1-Preparing the Divider-
NOTE- IF YOU WILL NOT BE PAINTING THE DIVIDER SKIP TO PART 2 (BELOW) FOR INSTALLATION INSTRUCTIONS
This is the divider before any prep.
Clean the divider (both sides) with grease and wax remover or similar product.
If painting the divider, remember to prime it first. Allow to dry.
Then paint your selected finish color on the side that will face to the rear (trunk) area. Allow to dry before installing.  If adding insulation and / or carpet, do so now before beginning the installation.  You are now ready to install the divider.

For more detailed paint instructions refer to Metro Authentic Finish paint instructions.

Part 2- Installing the Rear Seat Divider

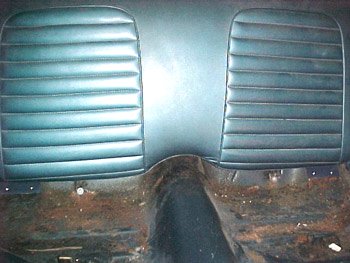

Remove rear seat sections.  First remove the bottom seat by pulling upwards at front lower edge of seat, then pull out (towards you) and remove from vehicle.  The upper seat has two 3/8 bolts attached to the bottom.  Remove the bolts, pull the seat up and out, then remove from vehicle.
Remove the rear quarter window handles by unscrewing the 3/32nd Allen head holding it and pull the handle off.  (If your handles are reproduction you will need a thin flat head screwdriver as this is a soltted screw rather that an allen screw.).
The interior quarter panels are held by up to 6 screws.  Remove the screws.
Hold the bottom of the panel and pull out, over the regulator, then up.  Remove from vehicle.
Top Remove cardboard divider.
Place the divider in position using the 4 hooks on the rear seat support.
Once the divider is positioned work around it drilling the 33 holes, one for each in the divider, into the rear seat support using a 1/8th drill bit.
Insert and tighten your 33“ # 8 screws. We recommend working from the center outward.

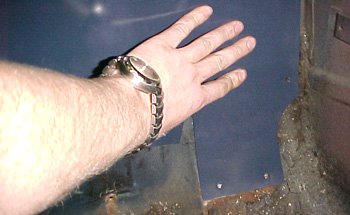

Note: when you get to the bottom corners, apply pressure to fit the ends to the contour of the car chassis.

Congratulations! Your divider installation is now complete and you can re-install the interior quarter panels and upper/lower seats.

Summary
Now you have the satisfaction of having installed a stronger divider in a relatively short time. We would love to receive photos of any creative applications you may have of your installation. Especially using speaker setups or carpeted/insulated finishes. We’ll post them with this article for others to see. Good luck, we hope this helped. These instructions are valid for 64 1/2, 65, 66, 67 and 68 Mustang coupes and convertibles
